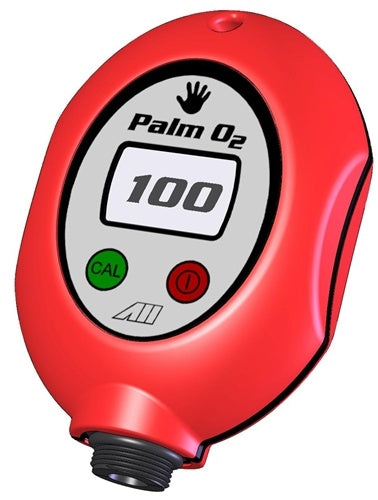

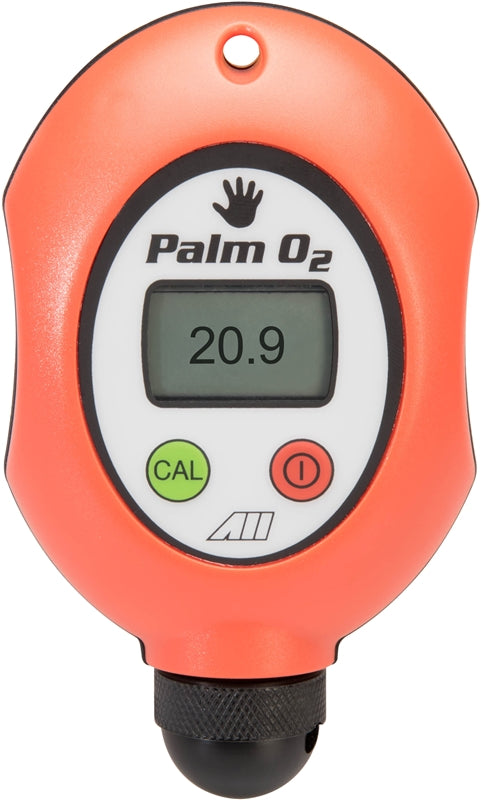

Palm O2 Oxygen Nitrox Analyzer

Simple to use . . . accurate reliable results
One touch calibration . . . 100% O2 or air
Long battery life . . . 13,000 hrs of use
Advanced sensor technology
Certified ISO 9001:2008 QA System

This palm size oxygen analyzer features an advanced galvanic oxygen sensor that measures from 0.05% to 100% oxygen over a 32 month operating life with no maintenance required. 13,000 hours of battery use and wide variety of optional accessories make it an ideal cost effective choice for checking O2 levels of compressed air scuba tanks and Nitrox mixes.

• Accuracy: < +2% of FS range under constant conditions
• Analysis: 0-100% oxygen
• Application: Verify O2 content of scuba compressed air tanks
• Calibration: Certified dry 100% oxygen or air after 8 hrs of use
• Compensation: Temperature
• Connections: 1x16 mm thread  (see options below)
• Controls: Soft touch keypad for ON/OFF and Calibration
• Dimensions: 2.72” x 4.1” x 1.35”; weight 7 oz. (196 grams)
• Display: 3 digit  LCD 1.1” x .625”; resolution 0.1% O2
• Flow Sensitivity: None between 0.2 to 10 liters per minute
• Humidity: Non-condensing 0-95% RH
• Linearity: + 1% under constant conditions
• Pressure: Inlet - ambient or regulated; vent - atmospheric
• Power:  (2) 1.5V AA alkaline batteries; 13,000 hrs of use
• Response Time: 90% of final FS reading in 10 seconds
• Sensitivity: < 0.5% of FS range
• Sensor: AII-11-75-PO2 D
• Sensor Life: 32 months in air at 25ºC and 1 atmosphere
• Storage Temp.: -20º to 60ºC (-4ºF to 140ºF) on intermittent basis
• Temp. Range: 5º to 45ºC  (41ºF to 113ºF)
• Warm-up Time: None
• Warranty: 12 months analyzer; 12 months sensor
