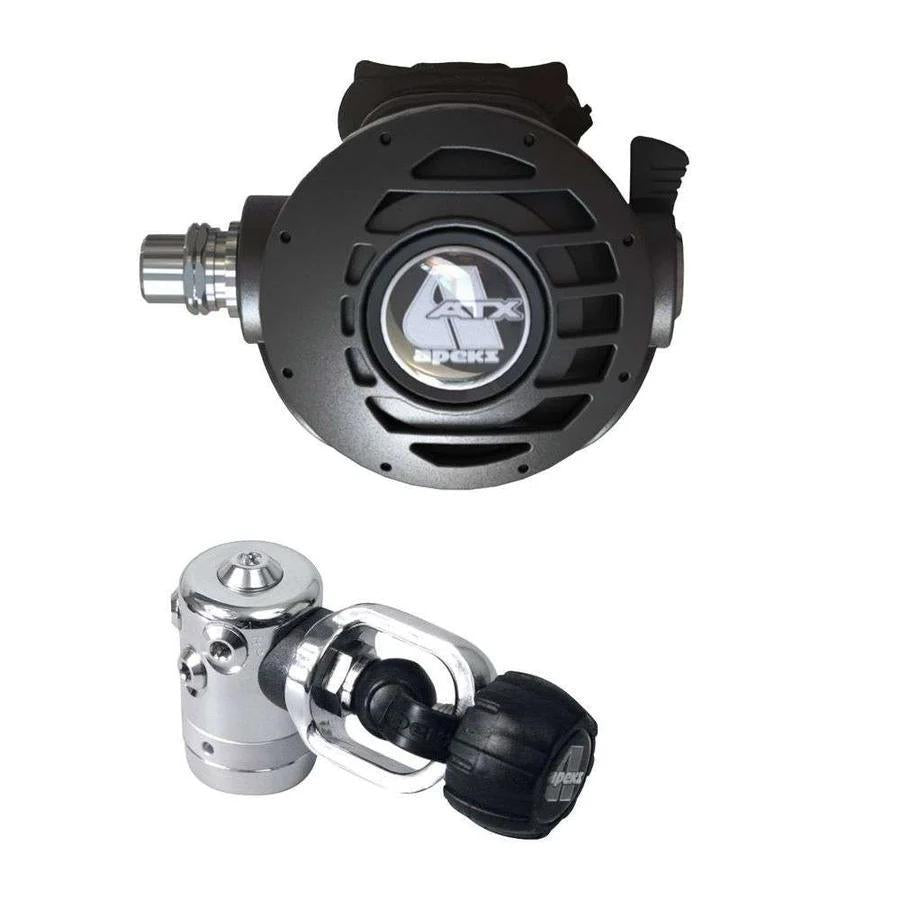

Apeks ATX - Dive Regulator Yoke

First Stage

• Uses the DS4 first stage
• Unique over-balanced, diaphragm design - as the diver descends, the over-balancing feature allows the medium pressure gas in the hose to increase at a rate faster than ambient. This results in superior performance at depth.
• 1 HP port and 4 MP ports are available.
• An environmental dry system keeps water out of the main spring chamber thus preventing ice buildup and keeping silt and contamination out.
• Available in DIN and yoke.

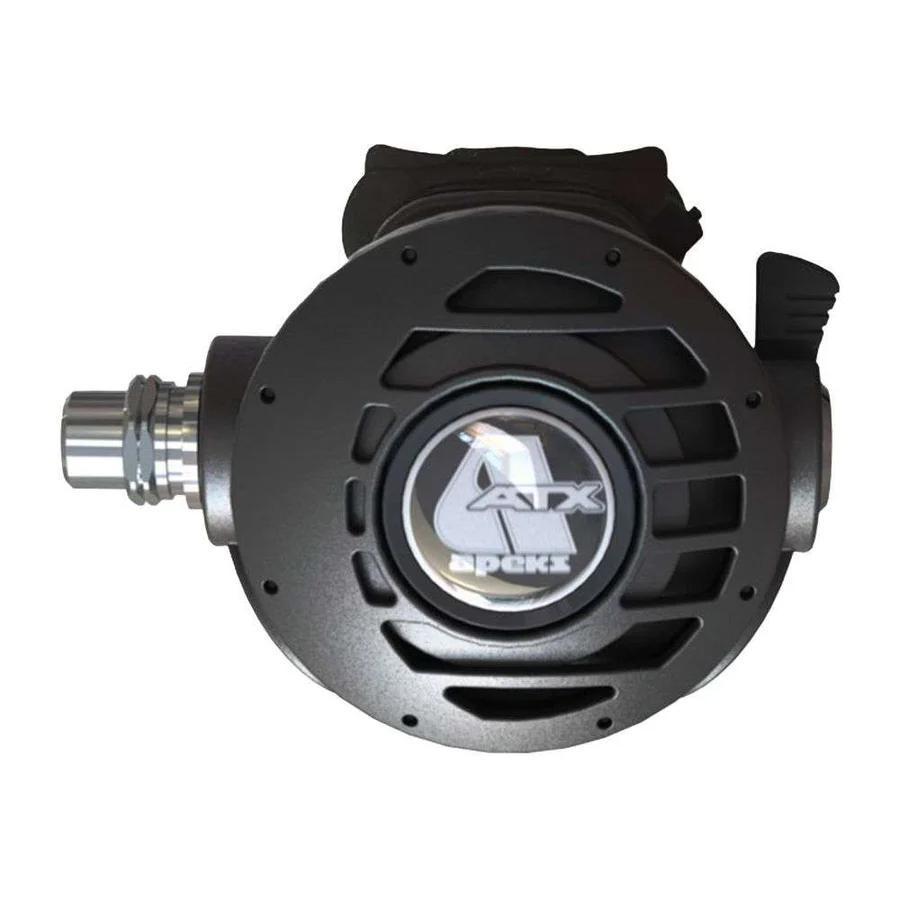

• Pneumatically-balanced second stage results in smooth, easy breathing.
• The large purge button on the ATX is easy to operate even with thick gloves.
• The integrated venturi control provides a performance boost at depth while preventing unwanted freeflow at the surface.
• An extremely efficient exhaust valve improves the breathing performance of the regulator.
• The Comfo-bite™ mouthpiece virtually eliminates jaw-fatigue.
• A heat exchanger (patented) which surrounds the valve mechanism, dissipates the cold caused by gas expansion while drawing in the warmth of the ambient water.
• Offers a compact, integrated exhaust tee.

• Connections: Yoke or DIN
• Type of first stage: Over-balanced diaphragm design, environmentally sealed
• Body Type: Cylindrical with environmental dry seal (DS4)
• Number of HP ports: 1 (7/16" UNF)
• Number of MP ports: 4 (3/8" UNF)
• Environmental Dry Kit: Standard
• First stage exterior: Chrome over marine brass
• Coldwater Use: Yes
• Type of second stage: Pneumatically balanced
• Integrated Venturi Lever: Yes
• Mouthpiece: Comfo-bite™
• Exhaust tee: Diver Changeable - comes with 2 sets
• Heat Exchanger for freezing resistance: Yes
• Overall work of breathing (WOB) scores: Avg. 0.85 joules/liter
• Nitrox compatible: Yes to 40% O2 when new, out of the box / Can be O2 cleaned to 100%.
• Weight: Yoke 1130g
