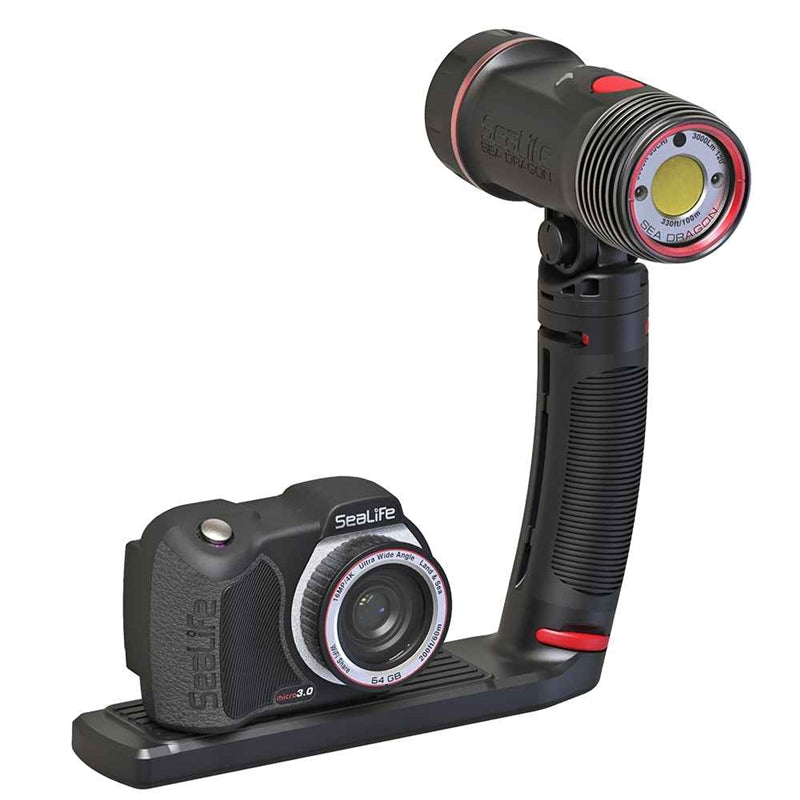

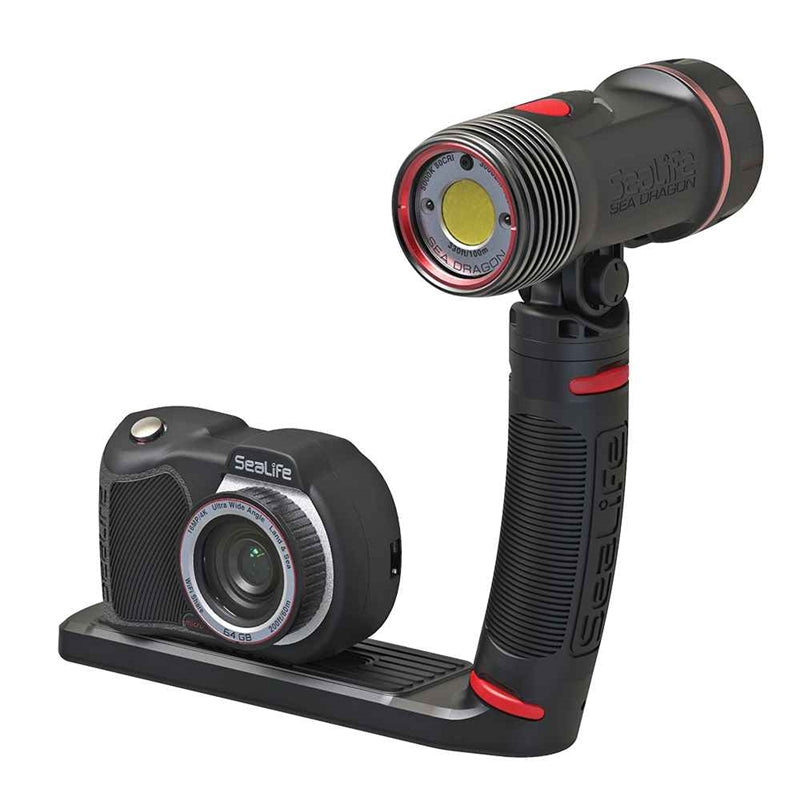

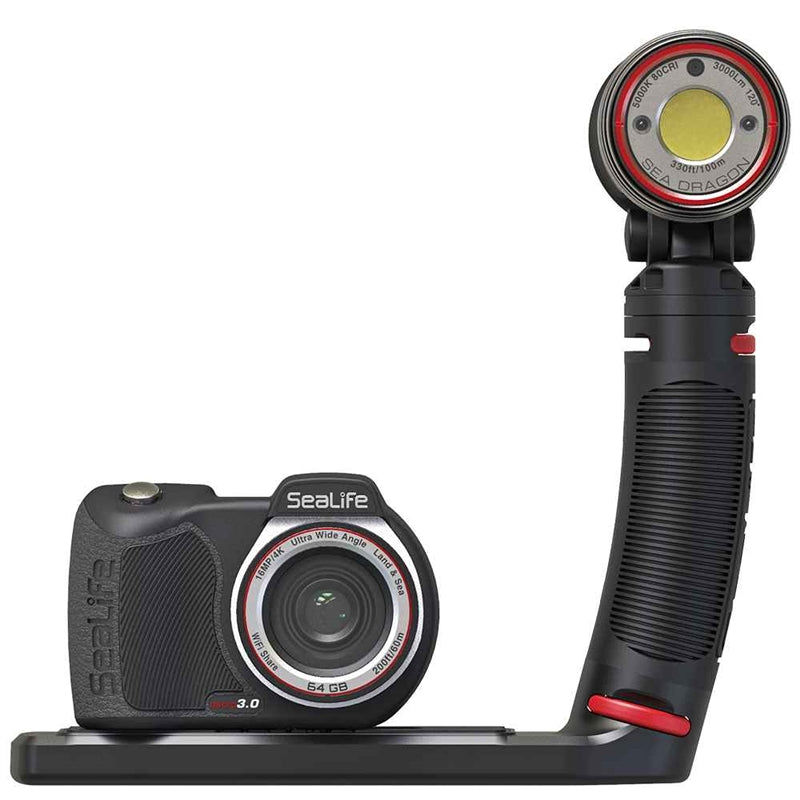

When you combine the powerful Sea Dragon 3000F Auto with the Micro 3.0 camera, youve created the perfect duo. The bright yet also warm and color friendly Sea Dragon has a wide and even beam angle that covers the shooting angle of the Micro 3.0 camera well. The 3000F offers an Auto feature that when enabled, adjust the light output automatically based on distance to your subject. The set includes a Flex-Connect single tray and grip, and allows for easy expansion into more lighting options.
Features

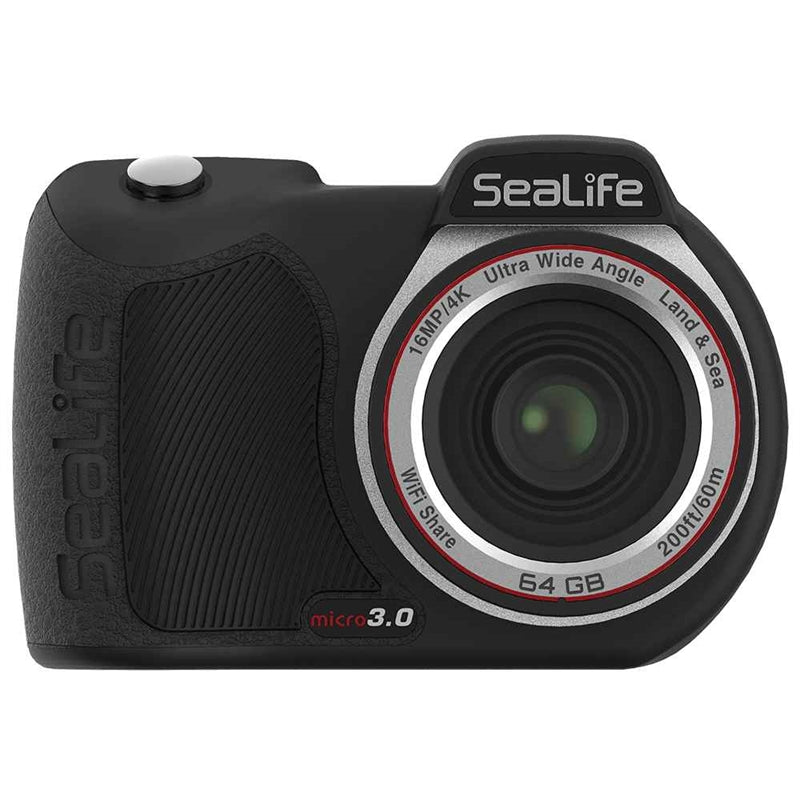

The SeaLife Micro 3.0 Camera is the latest and third generation of the popular permanently-sealed Micro camera series. The camera is leak-proof with no O-rings to lube or maintain, so there is never a worry about flooding the camera. Like its forerunners, the Micro 3.0 features an ergonomic, compact design with easy-to-use controls and menus. The camera has a 16-megapixel Sony® CMOS image sensor and offers 4K ultra-high definition video. Since it’s permanently sealed, the Micro 3.0 has a large 3-plus hour battery good for a full day of diving and built in 64gb of memory to store thousands of photos and hours of video.
The camera’s ease of use starts with the three wide Piano key type buttons that are easy to locate and control, even with dive gloves on. The intuitive Micro 3.0’s Easy Setup feature quickly guides you through the correct settings based on the shooting environment, depth and lighting accessories being used.
Micro 3.0 users can fine-tune their underwater images with a new manual white balance adjustment and the ability to capture images in RAW format, for those that want to edit their images later.
The built-in wide angle 100° lens allows the diver to get close to the subjects while still keeping everything in the picture.
The Micro 3.0 offers WiFi sharing ability, so you can wirelessly preview, download and share pictures & videos to a smart phone or tablet with the free Micro 3+ app available at Google Play or Apple App stores.

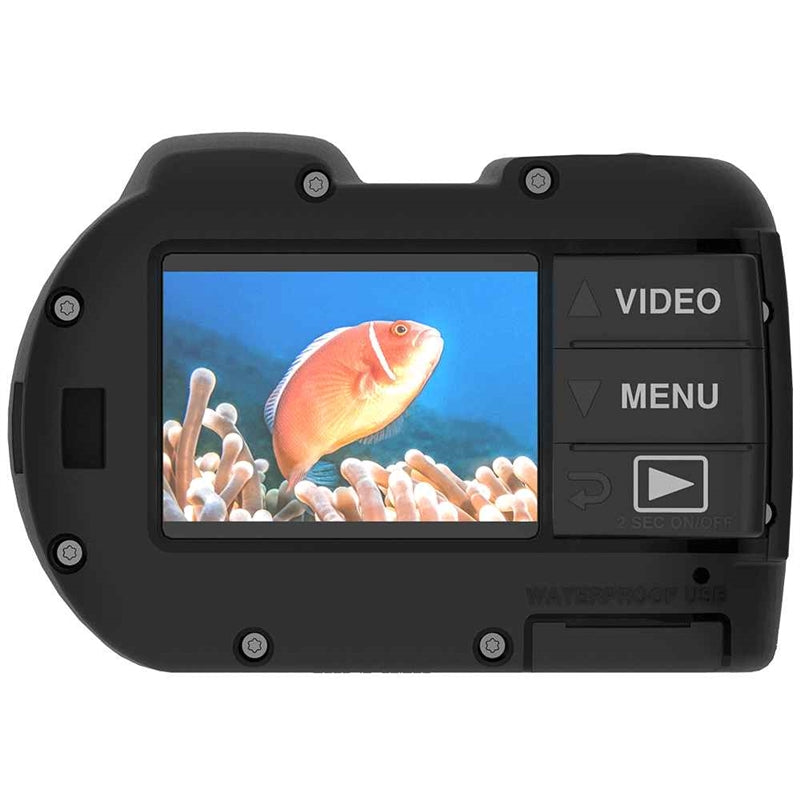

The larger 260K high-resolution 2.4” TFT color LCD display makes capturing and reviewing photos and video easy on the small camera.
Micro 3.0 Features
16 megapixel Sony IMX083 CMOS 1/2.3” image sensor
iCatch V50 DSP processor
4K Ultra HD Video @ 30fps and 1080p HD video @ 120 fps (Super Slo-Mo)
260K hi-res 2.4” TFT color LCD
Permanently sealed – No waterproof door or O-rings to maintain.
Ultra-fast shutter response of 0.1 seconds. Virtually no shutter lag.
Easy Setup with five Land & Sea™ scene modes:
Land Auto – Above water pictures and videos
Land Sports/Action – Above water action scene with continuous burst shooting (10 shots within 1 sec)
Dive – Adds color correction while diving in deeper water
Snorkel – Adds color correction while snorkeling or diving in shallow water
UW Light – Underwater pictures and videos with Photo-Video light
Three built-in digital UW color correction filters (WB modes):
UW Deep for deeper tropical, blue/cyan water
UW Green for colder, green/emerald water
UW Shallow for shallow tropical, blue/cyan water
Manual White Balance to customize UW color correction to your specific depth and water conditions.
Continuous Burst Shooting – shoots 10 high resolution 16MP pictures in 1 second.
RAW image format – Hi-res, uncompressed .DNG image files for virtually unlimited photo editing options.
100° Ultra-wide angle Lens
Stabilization – Electronic stabilization reduces vibration and hand shaking for smoother video recording
“Piano Key” button controls for easy operation, even with dive gloves on.
WiFi – wirelessly preview, download and share pictures/videos to smart phone or tablet w/ free SeaLife app.
64GB internal memory holds 10,300 16mp pictures, 140 minutes 4K video, or 370 minutes 1080p HD video
Waterproof to 200ft / 60m.
Picture in Video – capture 8mp still images while recording 4K video.
Compact design for easy handling and lightweight travel.
Fully rubber-armored shock resistant.
Instant Focus from 15” (38cm) to infinity and 4” to 8” (10 to 20cm) with optional SL571 Super Macro Lens.
Time lapse shooting at set time intervals – saves as video file or series of still images.
Upside-down shooting mode – When mounting camera upside down, pictures and videos are saved upright.
Shortcut mode – Push and hold menu button to quickly access a specified menu setting.
2000 mAh / 3.7V / 7.4Wh internal lithium ion rechargeable battery for 3+ hours video or 1000+ images.
External power mode – Connect and operate camera with external power supply (land only.)
Soft textured rubber grip design for sure grip.
Expandable with popular SeaLife accessories (One or two Sea Dragon Photo-Video-Dive Lights, Close-up Lens, Super Macro Lens.)
Sea Dragon 3000F Auto Features
Powerful 3000 lumens featuring BridgeLux Gen 7 Vero COB LED Array
Auto Bright mode adjusts from 300 to 3000 lumens to preserve your eye’s natural night vision and extends battery life
Auto Flash Detect mode: Light turns off for 1 second when detecting external flash. Flash detect can be turned on or off. Flash detect works in all 5 light modes
One button control for easy operation. One button to power light on/off and select brightness
Five Light modes: 3 white modes (Manually adjust to 100%, 50% or 25%), 1 white Auto (Automatically adjusts from 10% to 100%) and 1 Red light mode
60 minute burn time at full power
Constant brightness – Regulated circuitry so light won’t dim with battery power.
80 Color Rendering Index (CRI) that mimics natural daylight.
Easy to expand with Flex-Connect™ trays, grip and flex arms
Quick-release button to detach light and aim in crevices and hard to reach areas
120° wide beam angle evenly illuminates the subject with no hot spots. 90° underwater
Emergency mode emits blinking light or SOS signal to alert others of distress. Activated by holding down power button for 5 seconds from power off state
Depth rated to 330 ft (100m)
Corrosion-proof metal light head for heat dispersion and durability
Removable 25Wh 3400 mAh Li-Ion battery w/ charger and international plug adapters included
Waterproof battery compartment protects internal electronics even if light accidently floods
Includes standard single tray, grip and compact travel case
Mounting tray with universal ¼-20 screw fits all SeaLife and other brands

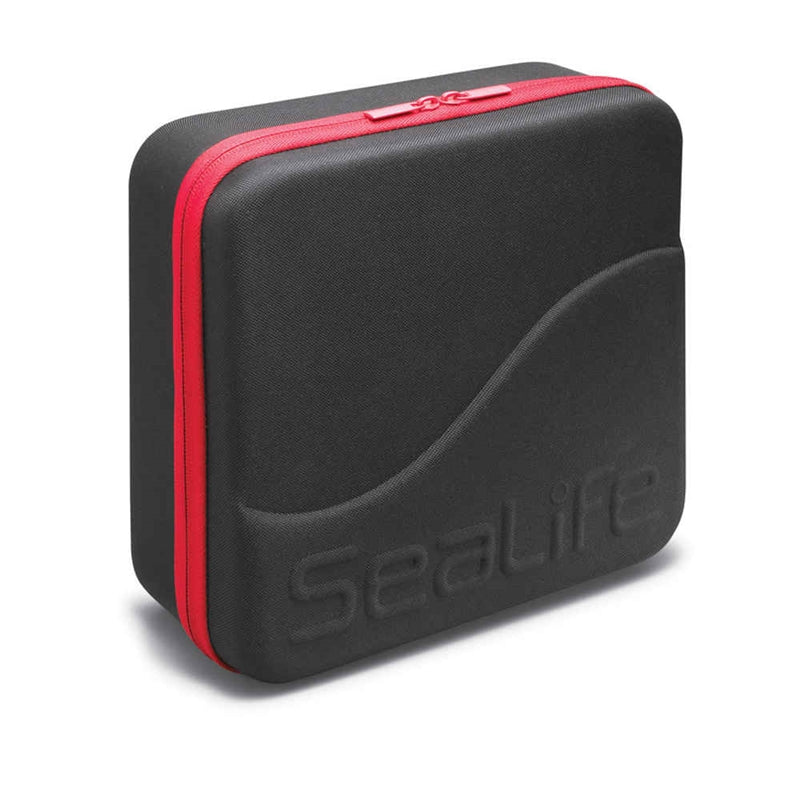

Sea Dragon Case
Micro 3.0 Specifications
Image Sensor: 16 mega pixel SONY IMX083 1/2.3” CMOS sensor
Image resolution/sizes: 16mp (4608×3456 4:3), 14mp (4608×3072 3:2), 12mp (4608×2592 16:9), 9mp (3456×2592 4:3), 7mp (3456×1944 16:9), 4mp (2304×1728 4:3), 3mp (2304×1296 16:9), 2mp (1920×1080 16:9)
Picture file format: JPEG (.jpg) and RAW (.dng)
Video Resolution/sizes: 4K at 30fps (frames per second), 1080p at 120 fps, 1080p at 60 fps, 1080p at 30 fps, 720p at 120fps, 720p at 60fps, 720p at 30fps, 480p at 120fps, 480p at 60fps, 480p at 30fps,
Video file format: MPEG4 h.264 (.mp4)
Audio: Microphone: Yes (mono), Speaker: Yes (mono)
Audio format: ACC (video/ audio compressed together)
Lens aperture: F2.8
Lens Optics: 7 element, fully multi-coated, aspheric optical lens (Confirm qty of elements)
Focal Length: 3.37mm (35mm film equivalent = 19mm)
Focus type: Fixed-focus lens
Focus Range: 15” to Infinity (40cm to infinity)
Field of View*: 100° diagonal FOV
Shutter speed: 1/25 to 1/2000 second
Scene modes: Land Auto, Land Sports/Action, Dive, Snorkel and Ext Light mode (when using photo video light accessory)
Capture modes: Single, Continuous (shoots 10 16MP pictures in the 1st second and 2 pictures thereafter), Time Lapse (Saves as .mp4 file or as series of individual still images depending on setting), Burst (shoots 10 16MP pictures within 1 second) and AEB (Auto Exposure Bracketing)
White Balance modes: Auto, Manual, Underwater Deep, Underwater Shallow, Underwater Green, Daylight, Cloudy
ISO: Auto, 100, 200, 400, 800, 1600, 3200
Exposure Value (EV): EV adjustable from -2.0 to +2.0 in 0.3 increments
Quality: Super Fine, Fine and Standard
Sharpness: Standard, Hard and Soft
Metering: Center, Average and Spot
Color: Standard, Vivid, Black/White, Sepia and Negative
Self Timer: 10 sec, 3 sec and 10+3 sec
LCD: 2.4” 260K TFT LCD color display
Status LED: Yes; 1x status LED (br 320nirs led), Blinking red = charging, Solid red = fully charged, Solid green = Data connection okaym Blinking green = Data connection not okay (Display: “Clean USB pins & adapter. Use only original USB cable”)
Memory (internal): 64GB internal solid state memory
NAND Flash: 1GB
USB: 2.0 High Speed
PC connection: PC: Windows XP / 7 and up, MAC: OS 10.8 and up
Language Support: On-Screen Display: English, German, French, Spanish, Italian, Dutch, Turkish, Russian, simplified Chinese, traditional Chinese; Printed manual: English; Online manual: German, French, Spanish, Italian, Dutch, Turkish, Russian, simplified Chinese, traditional Chinese
Battery: Internal Li-ion battery. 2000 mAh, 3.7V. 7.4Wh.
Battery life: 3+ hours when shooting pictures or recording 1080p-30fps video, 2+ hours when RAW+JPEG images or recording 4K-30fps video
External Power: Yes; camera may be connected to 5V external power supply for full functionality. Note: Ext Power only available on land.
Charging: Use any 5V USB wall charger (not included); Includes USB cable (Type A to Micro-b) and 5-pin USB adapter; 4 hour charging time with 1.5A+ wall charger (8 hours with 0.PC USB output)
App: Works with SeaLife Micro 3+ app installed on phones and tablets running Android 6 and up or Apple iOS 12 and up.
WiFi: Wi-Fi 802.11b/g/n (Approximate range = 100ft / 30m)
System Settings: WiFi on/off, System Reset, Format, Date/Time, Memory Available, Mic off/low/med/high, Sound off/low/high, Quick View on/off, Language, System NTSC/PAL, Light Frequency 50Hz/60Hz, Date Stamp on/off, Auto Off/3min/5min, Upside-down shooting, Shortcut, SSID and FW version.
Waterproof: Individually depth tested to 200’ (60 m)
Altitude: Operational to 25,000ft (7600m) above sea level
Shockproof: 3ft / 1m
Buoyancy: Negative 1.8 oz. (52g)
Operating temp: Land: 23°F to 122°F (-5°C to 50°C); Underwater: +33°F to +110°F (0.5 °C to 44°C)
Storage temp: -20°F to +140°F(-29°C to +60°C)
Tripod mount: Standard ¼-20 UNC tripod threads
Certification: CE, AS/NZS,ROHS, FCC, IC
Product weight: 11.6 oz. (329g)
Product dimensions: 2.1” x 2.9” x 4.2” (5.4cm x 7.4cm x 10.7cm)
Packaged weight: 2lbs (0.9kg)
Packaged dimensions: 3.7” x 5.1” x 5.5” (9.5cm x 13.0cm x 14.0cm)
Warranty period: 1 year limited warranty for manufacturing defects
Sea Dragon 3000F Auto Specifications
Body material: Anodized aluminum light head with fiber-reinforced polycarbonate body
Light source/Bulb type: 1x COB LED Array (BridgeLux Gen 7 Vero LED Array – BXRE-50E4001-C-74), 2x Cree XP-E red LEDs
Brightness: White light: 3000 lumens (maintained throughout run time at full power), Red light: 180 lumens
Brightness control/Light modes: 100% white → 50% white → 25% white → Auto white → Red → repeat cycle
Color temperature: 5000K
Color Rendering Index (CRI): 80
Beam angle: White Light: 120° on land / 90° underwater, Red light: 88° on land / 66° underwater
Battery: Lithium Ion 7.4V, 3400 mAh, 25 Wh (included)
Battery charge time: 170 minutes
Run time: 60 minutes at full power, 120 min at half power or Auto, 240 min at quarter power
10 Minute reserve power: Light dims to 25% for 10 minutes when battery is near empty
Depth: Tested to 330 ft (100m)
Operating temperature: 0°F to 113°F (0°C to 45°C)
Storage temperature: 14°F to 140°F (-10°C to 60°C)
Light modes: Full power, half power, quarter power and Auto (adjusts from 10% to 100%)
Dimensions: 8.5” x 9.5” x 2.3” (22cm x 24cm x 6cm) fully assembled light head w/battery, grip and tray; 5.1” x 2.2” 4.1” (13.0cm x 5.6cm x 10.4cm) Light head
Weight: 14.4 ounces (408 grams) light head w/battery installed
Bulb life: 35,000 hours
O-ring: Dual silicone O-rings (lube included)
Buoyancy: Negative
